Features:
• Insulation class H
• Motor anti-vibration mounted
• Flue temperature:≤180C°(continuous)
• Housing & impeller: aluminized sheet steel
≤240C°(continuous)
• Mounting position must be specified for
corresponding support elements.
Model
Voltage
(V)
Frequency
(Hz)
Input power
(W)
Current
(A)

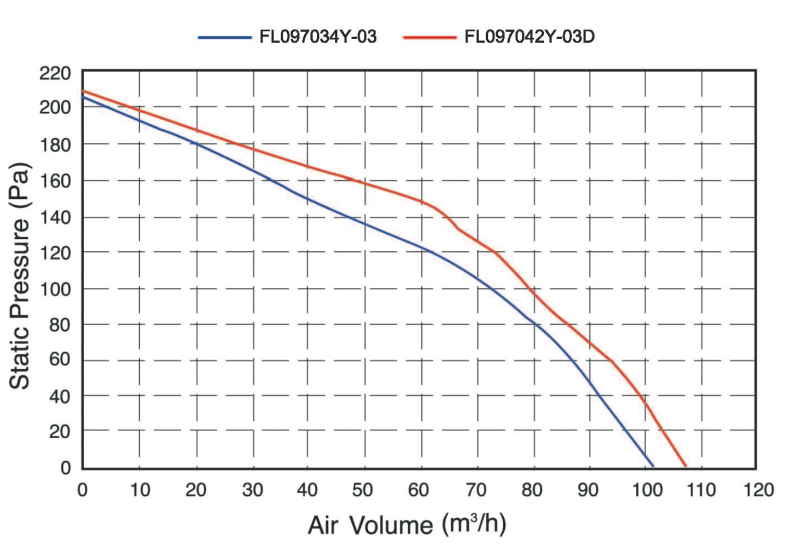

Air volume
(M3/h)
Static pressure
(Pa)

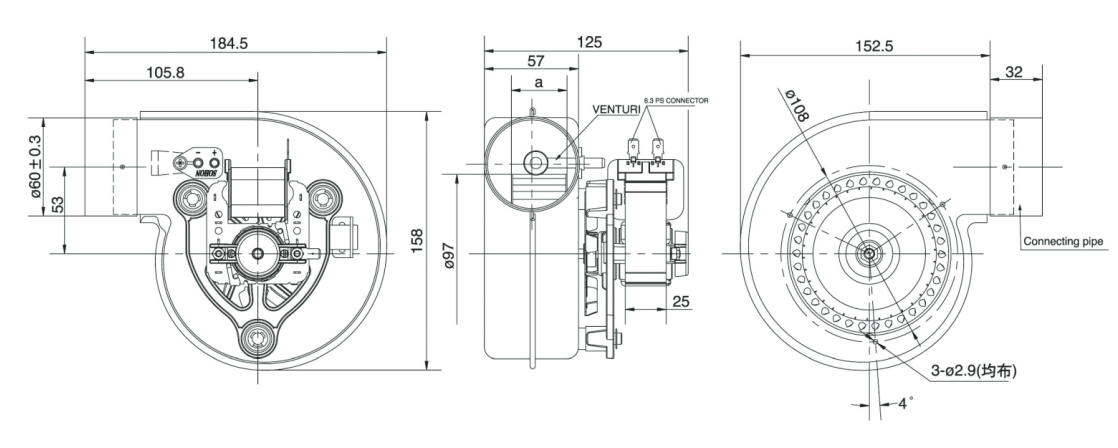

Dimensions
a(mm)
FL097034Y-03
220
50
35
0.30
100
205
34
FL097042Y-03D
36
0.32
108
208
42
