- Product Introduction
- Product message
Features:
• Insulation class H | • Motor anti-vibration mounted |
• Flue temperature:≤250C°(continuous) | • Housing & impeller: aluminized sheet steel |
• With speed encoder | • Mounting position must be specified for |
corresponding support elements. |

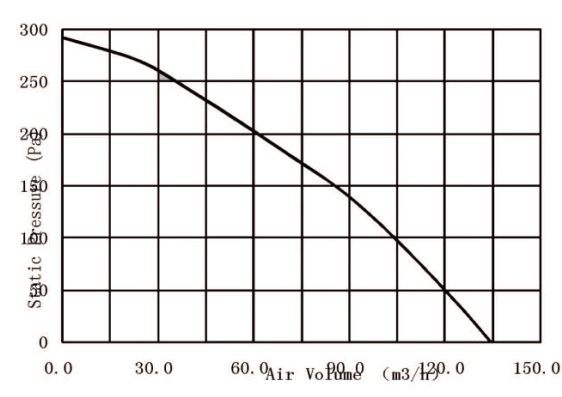

Model | Voltage (V) | Frequency (Hz) | Input power (W) | Current (A) | Speed (RPM) | Air volume (M3/h) | Static pressure (Pa) |
FL150020Y-05 | 230 | 50 | 50 | 0.5 | 2450 | 292 | 134 |
