- Product Introduction
- Product message
Features:
• Insulation class H | • EC Motor |
• Flue temperature:≤180C°(continuous) | • Housing & impeller: aluminized sheet steel |
≤240C°(continuous) | • Mounting position: Vertical installation to support. |
• Motor anti-vibration mounted |

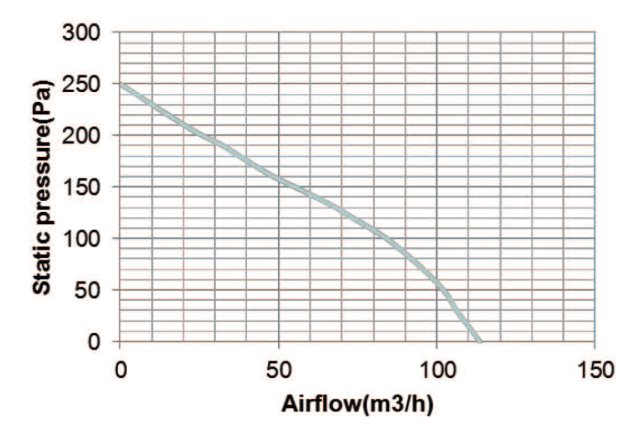

Model | Voltage (V) | Frequency (Hz) | Input power (W) | Current (A) | Speed (RPM) | Air volume (M3/h) | Static pressure (Pa) |
FL097034D-01 | 24 | - | 20 | 0.85 | 3000 | 110 | 240 |
FL097034D-02 | 12 | - | 20 | 1.7 | 3000 | 110 | 240 |
FL097034D-03 | 230 | 50 | 20 | 0.2 | 3000 | 115 | 250 |
