Features:
• Die-cast aluminum housing | • Ball bearing on two sides |
• Conductive plastic impeller | • Housing & impeller: aluminized sheet steel |
• EC Motor | • Mounting position: Vertical installation to support. |
• Motor anti-vibration mounted | |

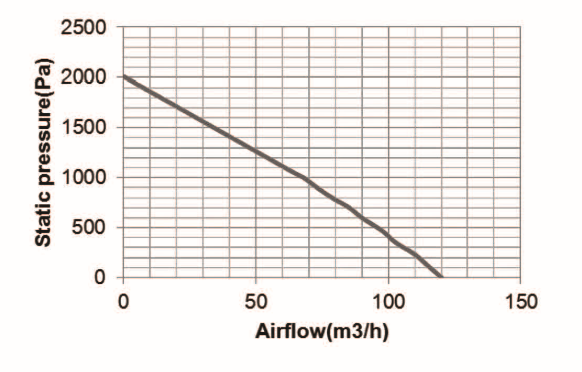

Model | Voltage (V) | Frequency (Hz) | Input power (W) | Current (A) | Speed (RPM) | Air volume (M3/h) | Static pressure (Pa) |
FL130021D-01 | 24 | - | 48 | 2 | 8200 | 120 | 2000 |
FL130021D-02 | 12 | - | 48 | 4 | 8200 | 120 | 2000 |
FL130021D-03 | 230 | 50 | 54 | 0.46 | 8500 | 125 | 2500 |
